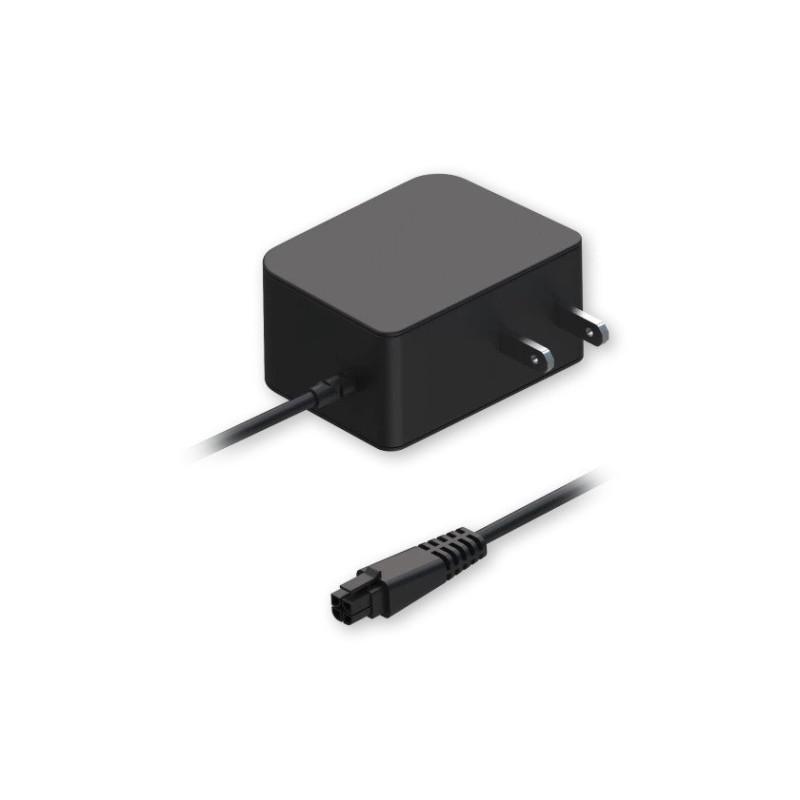

US POWER SUPPLY, 9W
SURSA DE ALIMENTARE US, 9W
Cod comanda: PR3PUUS3
TECHNICAL DATA
GENERAL
Input voltage
100 – 240 VAC
Input frequency
50 / 60 Hz
Input current
0.4 A
Input connector
US (Type A)
Output voltage
9 VDC
Output current
1.0 A
Output connector
4-pin, 3 mm pitch
ADDITIONAL
Input voltage range
90 – 264 VAC
Input frequency range
47 – 63 Hz
Maximum input inrush current
40 A
Output voltage maximum deviation
8.55 – 9.45 VDC
Short circuit protection
✓
HIPOT (dielectric withstand test)
Primary to Secondary: 3000 VAC
MTBF
50000 h
Certification
UL 60950-1
CSA C22.2 No. 60950-1-07
47 CFR FCC part 15 subpart B, 10-1-2016
ANSI C63.4:2014
IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321:2008 Annex C
Pagina produsului: https://teltonika-networks.com/products/accessories/powering-options/us-power-supply-9w
