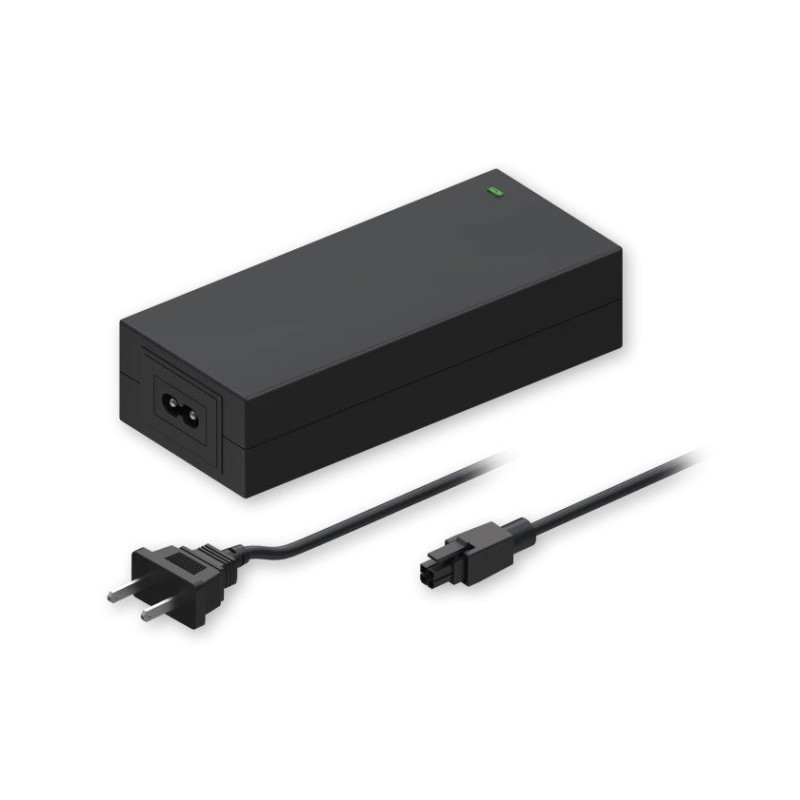

US POWER SUPPLY, 62W

TECHNICAL DATA

GENERAL

Input voltage

100 – 240 VAC

Input frequency

50 / 60 Hz

Input current

1.5 A

Input connector

US (Type A)

Output voltage

48 VDC

Output current

1.3 A

Output connector

4-pin, 3 mm pitch

Weight

320 g

ADDITIONAL

Input voltage range

90 – 264 VAC

Input frequency range

47 – 63 Hz

Maximum input inrush current

50 A

Output voltage maximum deviation

45.6 – 50.4 VDC

Short circuit protection

✓

HIPOT (dielectric withstand test)

Primary to Secondary: 4000 VDC

MTBF

50000 h

Certification

Safety: UL 60950-1 Ed.2, CAN/CSA C22.2 No. 60950-1 Ed.2

EMC: FCC Part 15, Subpart B

Pagina produsului: https://teltonika-networks.com/products/accessories/powering-options/us-power-supply-62w
