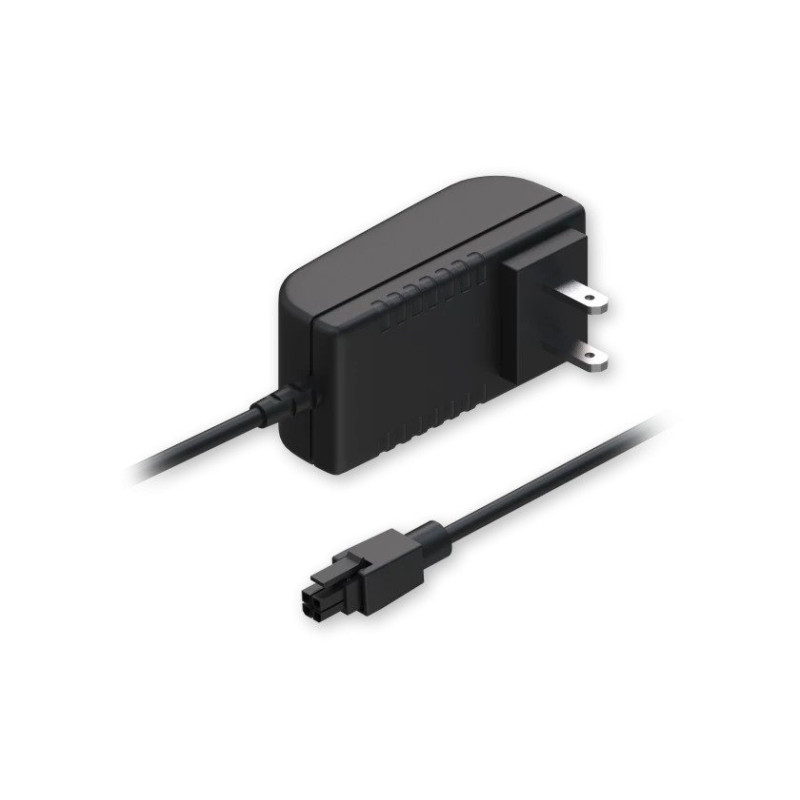

US POWER SUPPLY, 24W

TECHNICAL DATA

GENERAL

Input voltage

100 – 240 VAC

Input frequency

50 / 60 Hz

Input current

0.6 A

Input connector

US (Type A)

Output voltage

12 VDC

Output current

2.0 A

Output connector

4-pin, 3 mm pitch

ADDITIONAL

Input voltage range

90 – 264 VAC

Input frequency range

47 – 63 Hz

Maximum input inrush current

40 A

Output voltage maximum deviation

11.4 – 12.6 VDC

Short circuit protection

✓

HIPOT (dielectric withstand test)

Primary to Secondary: 3000 VAC

MTBF

50000 h

Certification

47 CFR FCC part 15 subpart B, 10-1-2016, ANSI C63.4:2014, IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321:2008 Annex C, UL 60950-1, CSA C22.2 No 60950-1-03
