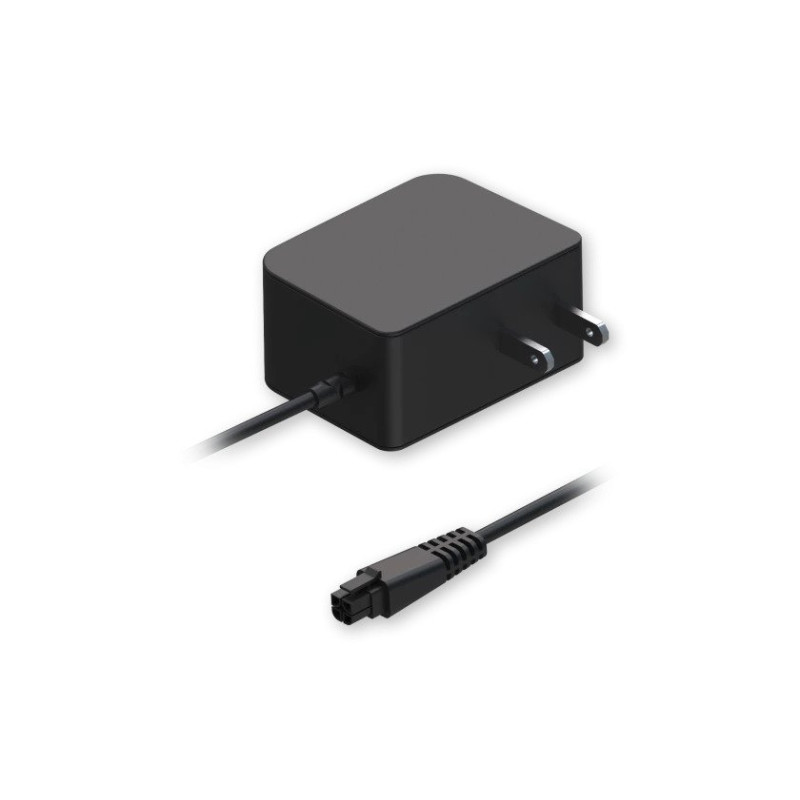

US POWER SUPPLY, 18W

TECHNICAL DATA

GENERAL

Input voltage

100 – 240 VAC

Input frequency

50 / 60 Hz

Input current

0.6 A

Input connector

US (Type A)

Output voltage

12 VDC

Output current

1.5 A

Output connector

4-pin, 3 mm pitch

Weight

82.6 g

ADDITIONAL

Input voltage range

90 – 264 VAC

Input frequency range

47 – 63 Hz

Maximum input inrush current

60 A

Output voltage maximum deviation

11.4 – 12.6 VDC

Short circuit protection

✓

HIPOT (dielectric withstand test)

Primary to Secondary: 4000 VDC

MTBF

30000 h

Certification

Safety: UL 62368-1:2014 Ed.2, CSA C22.2 NO. 62368-1:2014 Ed.2

EMC: FCC Part 15, Subpart B: 2017, ANSI C63.4:2014

Energy efficiency: Level VI
