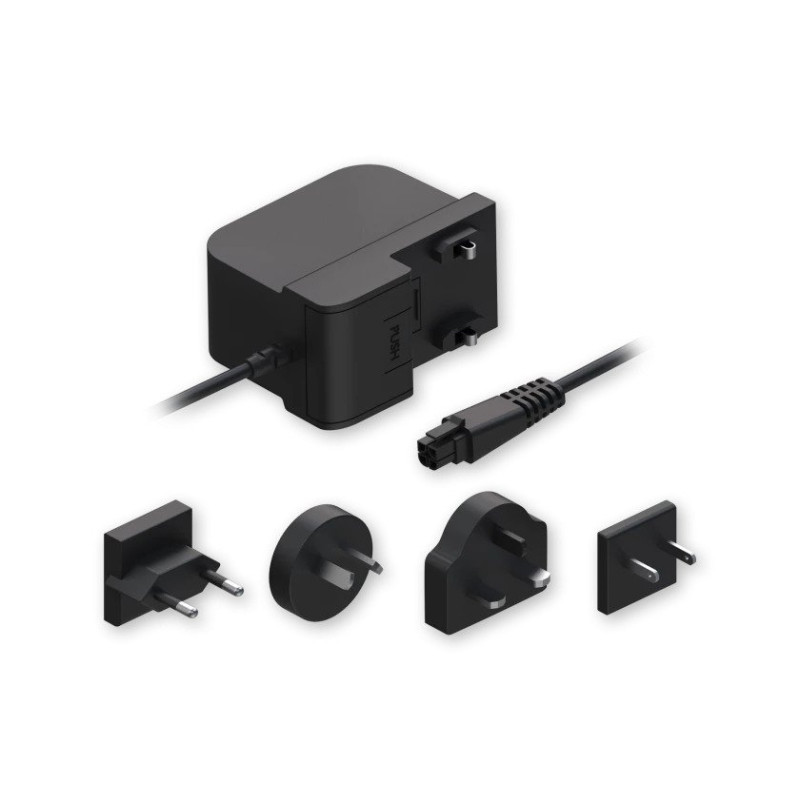

UNIVERSAL POWER SUPPLY, 9W
SURSĂ DE ALIMENTARE UNIVERSALĂ, 9W
Cod comanda: PR3PUPS3
TECHNICAL DATA
GENERAL
Input voltage
100 – 240 VAC
Input frequency
50 / 60 Hz
Input current
0.45 A
Input connector
Exchangeable. EU (Type C), US (Type A), UK (Type G) and AU (Type I) included
Output voltage
9 VDC
Output current
1.0 A
Output connector
4-pin, 3 mm pitch
ADDITIONAL
Input voltage range
90 – 264 VAC
Input frequency range
47 – 63 Hz
Maximum input inrush current
60 A
Output voltage maximum deviation
8.55 – 9.45 VDC
Leakage current
0.25 mA
Ripple and noise
200 mV
Output over current protection
2 A
Standby power
0.1 W
HIPOT (dielectric withstand test)
Primary to Secondary: 4000 VDC
MTBF
30000 h
PSU efficiency standard
DoE Level VI
Certification
EMC: EN 55032:2015, FCC Part 15B
EMI: EN 55035:2017, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, IEC 61000-4-11:2004
Safety: EN 62368-1:2014+A11:2017, UL 62368-1:2014 Ed.2, CSA C22.2 No. 62368-1:2014 Ed.2, AS/NZS 62368.1:2018
