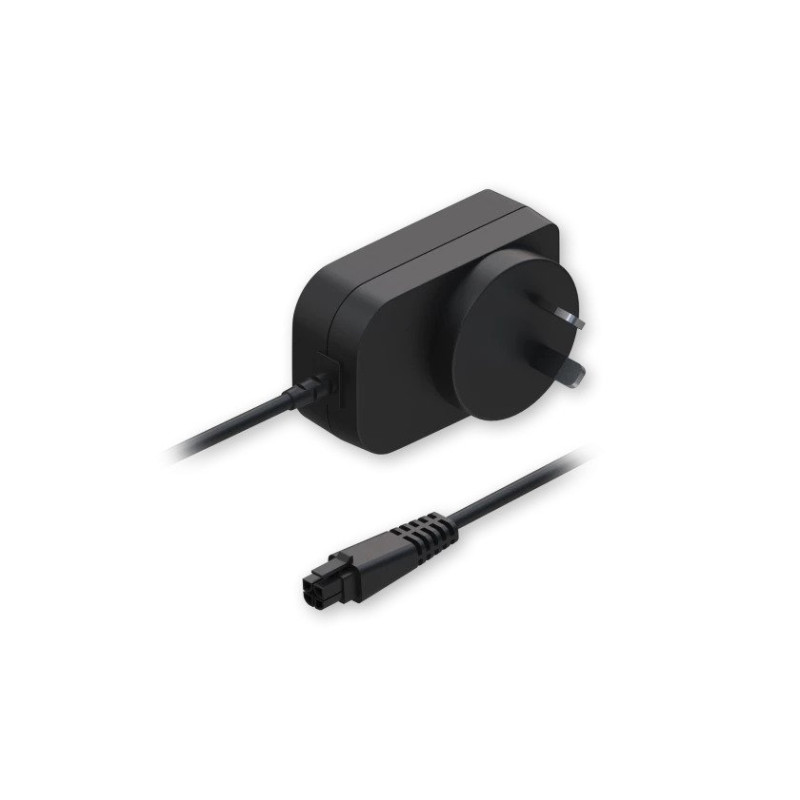

AU POWER SUPPLY, 24W

TECHNICAL DATA

GENERAL

Input voltage

100 – 240 VAC

Input frequency

50 / 60 Hz

Input current

0.8 A

Input connector

AU (Type I)

Output voltage

12 VDC

Output current

2.0 A

Output connector

4-pin, 3 mm pitch

Weight

115 g

ADDITIONAL

Input voltage range

90 – 264 VAC

Input frequency range

47 – 63 Hz

Maximum input inrush current

60 A

Output voltage maximum deviation

11.4 – 12.6 VDC

Short circuit protection

✓

HIPOT (dielectric withstand test)

Primary to Secondary: 4000 VDC

MTBF

30000 h

PSU efficiency standard

DoE Level VI

Certification

Safety: AS/NZS 60950.1:2015, AS/NZS 60065:2012 Inc A1

EMC: AS/NZS CISPR 22:2009+A1:2010, AS/NZS CISPR 13:2012, EN 55032:2012, EN 55024:2010, EN 55020:2007+A11, EN 61000-3-2:2014, EN 61000-3-3:2013

Pagina produsului: https://teltonika-networks.com/products/accessories/powering-options/au-power-supply-24w
