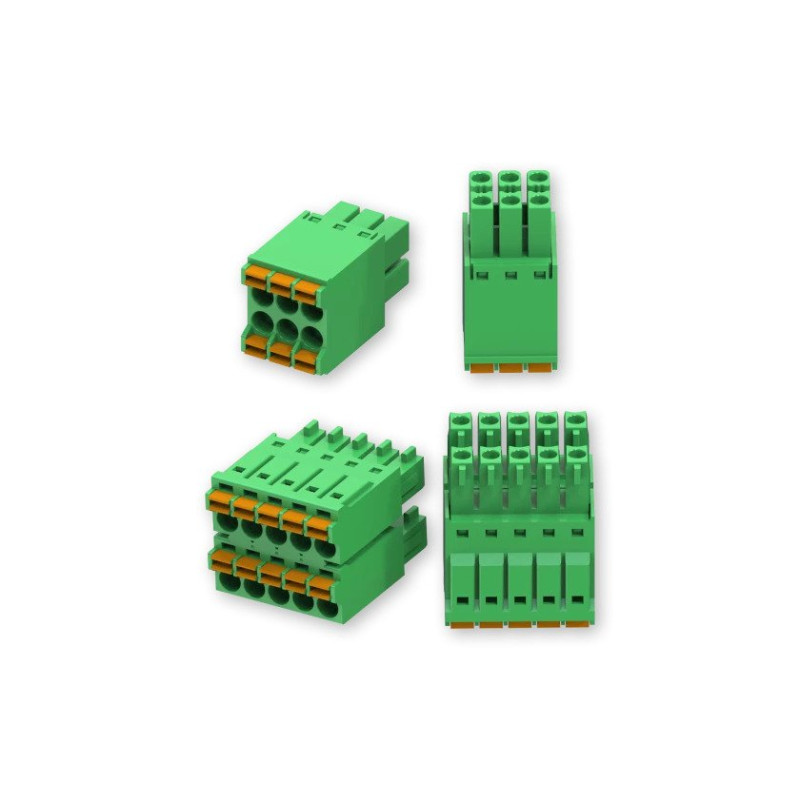

CONNECTORS SET
SET DE CONECTORI
Cod comanda: PR5MEC15
2X5 PIN CONNECTOR
GENERAL
Voltage rating
300 V
Current rating
8 A
Withstand voltage
1600 V/1min
Wire range AWG
16 – 24 AWG
Operating temperature
–40 °C ~ +105 °C
Insulation material
PA66
Internal contacts material
Copper alloy
Internal contacts finishing
Sn plated
ADDITIONAL
Strip Length
9 – 10 mm
Pitch
3.5 mm
Shrapnel material
Stainless steel
Conductor cross section
0.2 – 1.5 mm²
Poles
2 x 5
Flammability rating
UL 94 V-0
RoHS
✓
REACH
✓
2X3 PIN CONNECTOR
GENERAL
Voltage rating
300 V
Current rating
8 A
Withstand voltage
1600 V/1min
Wire range AWG
16 – 24 AWG
Operating temperature
–40 °C ~ +105 °C
Insulator material
PA66
Internal contacts material
Copper alloy
Internal contacts finishing
Sn plated
ADDITIONAL
Strip Length
9 – 10 mm
Pitch
3.5 mm
Shrapnel material
Copper alloy
Conductor cross section
0.2 – 1.5 mm²
Poles
2 x 3
Flammability rating
UL 94 V-0
RoHS
✓
REACH
✓
